Temperature & RH Sensors
MedTec’s in-line Temperature & Relative Humidity Sensors are designed for all your T/RH data logging needs. While built specifically to be used with MedTec’s CelTox Sampler, our line of sensors can be integrated into any experimental setup requiring monitoring of temperature and/or relative humidity.
Our digital sensors come with an RS-232 connection and free software to use on a PC. Alternatively, users can use their own LabView software. The analog sensor requires an external 2.0-5.5 VDC power input voltage and use a data acquisition system to log the output voltages to obtain the temperature/RH values.
Standard Sensor with Mounting Bracket

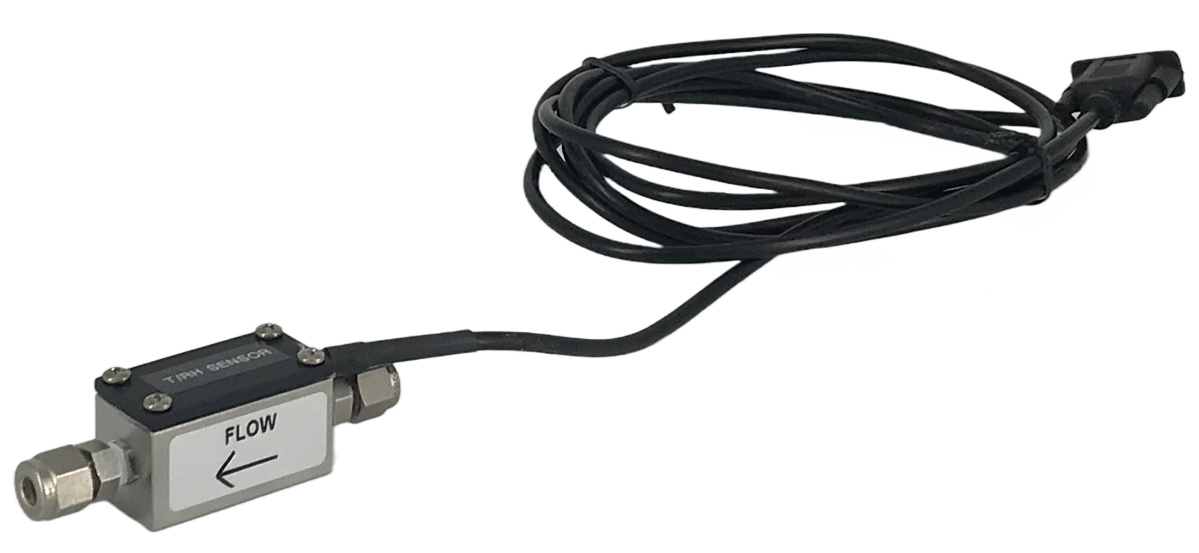

Stainless Steel Sensor with Swagelok Fittings
Material: Delrin (Plastic) or Stainless Steel
Fittings: Push-to-Connect Nickel-Plated Brass (Can upgrade to Swagelok)
Type: Digital (requires PC) or Analog (Voltage Outputs)
Cable: 10 ft. Length
2.0 in. x 1.0 in. x 1.6 in.
Inlet & Outlet Fitting Types
1/8 NPT

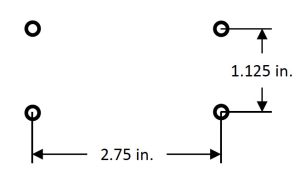

Mounting Bracket Dimensions
3.25 in. x 1.5 in. x 0.125 in.
For #6 Screw
(Mounting Bracket is optional)
